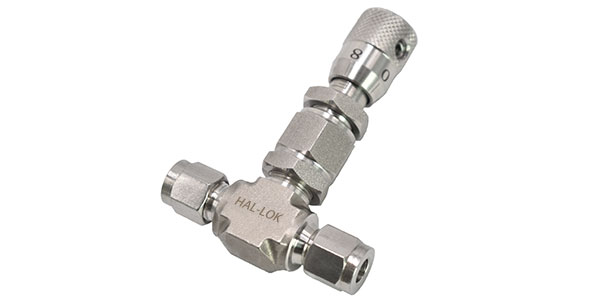

Ferrule Micro-Adjustment Valve

Stainless Steel High Flow Metering Valve Twin Ferrule Micro Regulating Needle Valve Stop Valve with Scale Metering Valve

Hotline:

+86 18721872815

product description

Features:

316 SS forged body construction
End Type: Double Ferrule Compression
Panel or in-line mounting

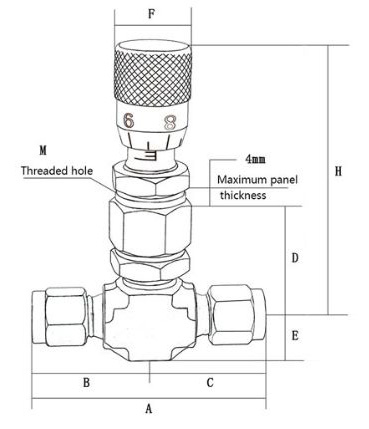

End Connection		Basic Ordering Number	Dimensions
Type	Size	Basic Ordering Number	A	B	C	D	E	F	H	M
Metric Tube	2mm	FZM02□ - SS	52.5	26.5	26.5	26.5	10	13	54	15
	3mm	FZM03□ - SS	52.7	26.6	26.6	26.5	10	13	54	15
	4mm	FZM04□ - SS	54.5	27.5	27.5	26.5	10	13	54	15
	6mm	FZM06□ - SS	57.5	29	29	26.5	10	13	54	15
	8mm	FZM08□ - SS	60.5	30.5	30.5	26.5	10	13	54	15
Fractional Tube	1/16in.	FZM1M□ - SS	56.7	28.6	28.6	26.5	10	13	54	15
	1/8in.	FZM2M□ -SS	52.7	26.6	26.6	26.5	10	13	54	15
	1/4in.	FZM4M□ -SS	57.3	28.9	28.9	26.5	10	13	54	15

□please select the material of the sealing ring according to the working

temperature and medium(refer to the chemical compatibility table)

Code Name	Seal Material	Operating Temperature
F	fluororubber	-23℃ ~ 204℃
N	Nitrile rubber	-30℃ ~ 121℃
E	EPDM rubber	-45℃ ~ 121℃
Z	perfluoroelastomer	-20℃ ~ 230℃
