Internal Thread Needle Valve

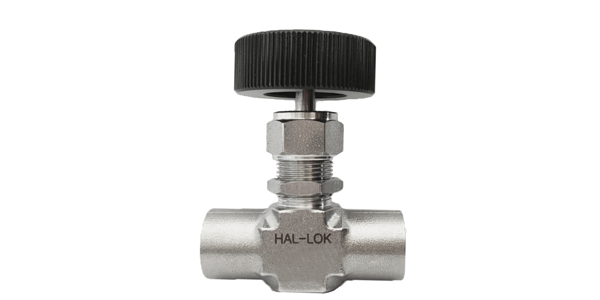

Two Way Female Threaded Needle Valve
Contact Us Now
Hotline:
+86 18721872815
product description

Features:

  • Available materials:SS304,SS316,904L,Alloy,etc.

  • Working pressures up to 3000 psig (207 bar)

  • Working temperature:-65℉(-54℃) to 450℉(232℃)


Ordering

Number

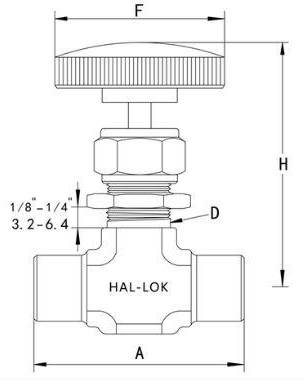

NPTOrificeCvDimensions
ADHF
Dimensions,in.

FAZFF-2N

NPT1/8

0.0800.091.890.482.291.01

FAZFF-4N

NPT1/4

0.2500.732.130.792.981.89

FAZFF-6N

NPT3/80.3751.803.011.043.893.01

FAZFF-8N

NPT1/20.3751.803.011.043.893.01
FAZFF-12NNPT3/40.3751.803.011.043.893.01


Related Products
Advantage
  • Precision-Engineered
    Expertly crafted for superior leak-proof performance and extended service life.
  • High-Pressure Rated
    Robust construction guarantees reliable operation in high-pressure environments.
  • Corrosion Resistant
    Manufactured from premium stainless steel to withstand corrosive media.
  • Fully Interchangeable
    Standard dimensions ensure seamless replacement with major international brands.
  • Rigorously Tested
    Every product is stringently inspected under our ISO9001 quality system.
  • Versatile Applications
    Suitable for a wide range of industries, from semiconductors to biopharma.
  • Premium Materials
    High-grade stainless steel core components ensure integrity from the start.
  • Globally Proven
    Trusted by customers worldwide for proven performance and reliability.
