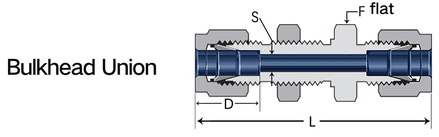

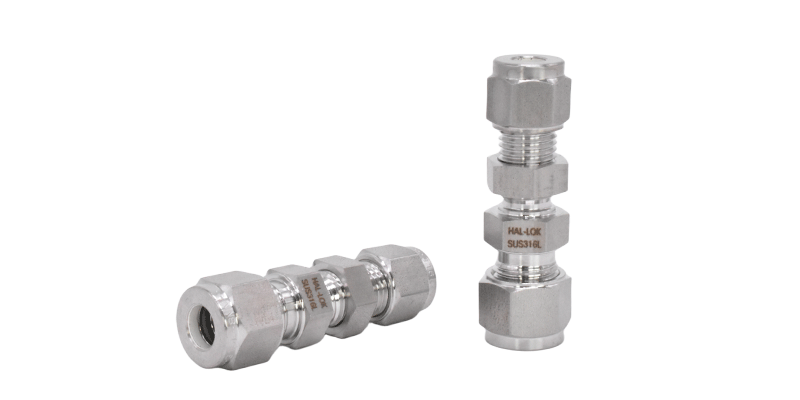

Bulkhead Union
Stainless Steel Straight Tube Fittings Bulkhead Union Double Ferrule Compression Fittings
Contact Us Now
Hotline:
+86 18721872815
product description

Features:

  • Available materials:SS304,SS316,904L,Alloy,etc.

  • Available in size:1/16" to 1" and 3mm to 38mm

  • Thread:NPT,BSP,BSPT,UNF,ISO,SAE etc.

  • Working temperature:-4 to 392¨H(-20 to 200¡æ)

  • Working pressure:up to 3000psig(206bar)

  • Silver plated nuts,reduce torque and easy to install.

  • Corrosion free with excellent chemical resistance

  • Hardened threads with smooth surface finish avoid galling and help to extend the fitting service life.


Tube

OD

Basic

Ordering

Number

Dimensions,in.
L
DSFPanel Hole Size

Max Panel

Thickness

1/8

CBSKT-2

2.02

0.50

0.09

1/2

21/64

0.50
1/4CBSKT-4

2.27

0.60

0.19

5/8

29/64

0.40

5/16

CBSKT-5

2.39

0.64

0.25

11/16

33/64

0.44

3/8

CBSKT-6

2.45

0.66

0.28

3/4

37/64

1/2

CBSKT-8

2.80

0.90

0.41

1 5/16

49/64

0.50

5/8

CBSKT-10

2.86

0.96

0.50

1 1/16

57/64

3/4

CBSKT-12

3.11

0.96

0.62

1 3/16

1 1/64

0.66
1CBSKT-16

3.77

1.23

0.88

1 5/8

1 21/64

0.75

1 1/4

CBSKT-20

4.85

1.62

1.09

1 7/8

1 41/64

1 1/2CBSKT-24

5.48

1.97

1.34

2 1/4

1 61/64

2CBSKT-327.102.661.812 3/42 41/64


Tube

OD

Basic

Ordering

Number

Dimensions,mm
L
DSFPanel Hole Size

Max Panel

Thickness

3

CBSKT-3M

51.3

12.9

2.4

14

8.3

12.7
4

CBSKT-4M

53.6

13.7

2.4

9.9

6

CBSKT-6M

57.7

15.3

4.8

16

11.5

10.2
8

CBSKT-8M

61.0

16.2

6.4

18

13.1

11.2
10

CBSKT-10M

63.7

17.2

7.9

22

16.3

12

CBSKT-12M

71.0

22.8

9.5

24

19.5

12.7
14

CBSKT-14M

72.5

24.4

11.1

27

22.5

15

CBSKT-15M

72.5

24.4

11.9

22.8

16

CBSKT-16M

72.5

24.4

12.7

18

CBSKT-18M

78.9

24.4

15.1

30

26.0

16.8
20

CBSKT-20M

84.5

26.0

15.9

35

29.0

19.0
25

CBSKT-25M

96.0

31.321.841

34.0

30

CBSKT-30M

124.0

39.626.250

40.5

32

CBSKT-32M

128.0

42.028.612.5
38CBSKT-38M145.049.433.76050.5


Tube

OD

Basic

Ordering

Number

Dimensions,in.
TTXL
DDXSFPanel Hole Size

Max Panel

Thickness

1/4

1/8

CBSKT-4-2

2.17

0.60

0.500.09

5/8

29/64

0.40

3/8

1/4

CBSKT-6-4

2.38

0.66

0.600.19

3/4

37/64

0.44

1/21/4CBSKT-8-4

2.63

0.90

15/16

49/64

0.50

Tube

OD

Basic

Ordering

Number

Dimensions,mm
TTXL
DDXSFPanel Hole Size

Max Panel

Thickness

63

CBSKT-6M-3M

55.1

15.3

12.7

2.4

16

11.5

10.2

610

CBSKT-6M-10M

60.4

16.7

15.2

4.8

19

14

11.1

612CBSKT-6M-12M66.822.815.24.823.817

12.7
