Features:
Available materials:SS304,SS316,904L,Alloy,etc.
Available in size:1/16" to 1" and 3mm to 38mm
Thread:NPT,BSP,BSPT,UNF,ISO,SAE etc.
Working temperature: -4 to 392¨H(-20 to 200¡æ)
Working pressure:up to 3000psig(206bar)
Silver plated nuts,reduce torque and easy to install.
Corrosion free with excellent chemical resistance
Hardened threads with smooth surface finish avoid galling and help to extend the fitting service life.

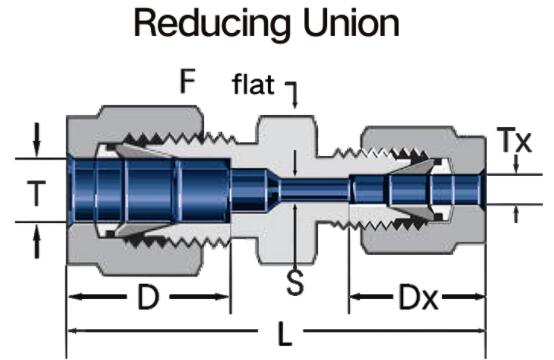

| Tube OD | Basic Ordering Number | Dimensions,in | ||||
| T(in) | Tx(in) | L | D | Dx | S | |
| 1/4 | 1/8 | SKT-4-2 | 1.52 | 0.60 | 0.50 | 0.09 |
3/16 | SKT-4-3 | 1.55 | 0.54 | 0.12 | ||
| 3/8 | 1/8 | SKT-6-2 | 1.61 | 0.66 | 0.50 | 0.09 |
1/4 | SKT-6-4 | 1.70 | 0.60 | 0.19 | ||
5/16 | SKT-6-5 | 1.74 | 0.64 | 0.25 | ||
| 1/2 | 1/8 | SKT-8-2 | 1.78 | 0.90 | 0.50 | 0.09 |
1/4 | SKT-8-4 | 1.85 | 0.60 | 0.19 | ||
3/8 | SKT-8-6 | 1.91 | 0.66 | 0.28 | ||
| 5/8 | 3/8 | SKT-10-6 | 1.94 | 0.96 | 0.66 | 0.28 |
1/2 | SKT-10-8 | 2.05 | 0.90 | 0.41 | ||
| 3/4 | 1/4 | SKT-12-4 | 1.94 | 0.96 | 0.60 | 0.19 |
3/8 | SKT-12-6 | 2.00 | 0.66 | 0.28 | ||
1/2 | SKT-12-8 | 2.11 | 0.90 | 0.41 | ||
5/8 | SKT-12-10 | 2.11 | 0.96 | 0.50 | ||
| 1 | 1/2 | SKT-16-8 | 2.38 | 1.23 | 0.90 | 0.41 |
3/4 | SKT-16-12 | 0.96 | 0.62 | |||
| Tube OD | Basic Ordering Number | Dimensions,mm | ||||
| T(mm) | Tx(mm) | L | D | Dx | S | |
| 6 | 3 | SKT -6M-3M | 38.6 | 15.3 | 12.9 | 2.4 |
4 | SKT -6M-4M | 39.4 | 13.7 | 2.4 | ||
| 8 | 6 | SKT-8M-6M | 42.3 | 16.2 | 15.3 | 4.8 |
| 10 | 6 | SKT-10M-6M | 44.5 | 17.2 | 15.3 | 4.8 |
8 | SKT-10M-8M | 45.1 | 16.2 | 6.4 | ||
| 12 | 6 | SKT-12M-6M | 47.0 | 22.8 | 15.3 | 4.8 |
8 | SKT-12M-8M | 47.8 | 16.2 | 6.4 | ||
10 | SKT-12M-10M | 48.7 | 17.2 | 7.9 | ||
| 16 | 10 | SKT-16M-10M | 45.9 | 24.4 | 17.2 | 7.9 |
12 | SKT-16M-12M | 52.0 | 22.8 | 9.5 | ||
| 18 | 12 | SKT-18M-12M | 53.5 | 24.4 | 22.8 | 9.5 |
| 25 | 18 | SKT-25M-18M | 61.0 | 31.3 | 24.4 | 15.1 |
20 | SKT-25M-20M | 62.3 | 26.0 | 15.9 | ||
| 30 | 18 | SKT-30M-18M | 75.4 | 39.6 | 24.4 | 15.1 |
20 | SKT-30M-20M | 75.4 | 26.0 | 15.9 | ||
25 | SKT-30M-25M | 80.1 | 31.3 | 21.8 | ||
| 32 | 18 | SKT-32M-18M | 77.8 | 42.0 | 24.4 | 15.1 |
20 | SKT-32M-20M | 77.8 | 26.0 | 15.9 | ||
25 | SKT-32M-25M | 82 3 | 31.3 | 21.8 | ||
| 38 | 20 | SKT-38M-20M | 87.5 | 49.4 | 26.0 | 15.9 |
25 | SKT-38M-25M | 92.0 | 31.3 | 21.8 | ||
30 | SKT-38M-30M | 105.0 | 39.6 | 26.2 | ||
