Features:
Available materials:SS304,SS316,904L,Alloy,etc.
Available in size:1/16" to 1" and 3mm to 38mm
Thread:NPT,BSP,BSPT,UNF,ISO,SAE etc.
Working temperature: -4 to 392℉(-20 to 200℃)
Working pressure:up to 3000psig(206bar)
Silver plated nuts,reduce torque and easy to install.
Corrosion free with excellent chemical resistance
Hardened threads with smooth surface finish avoid galling and help to extend the fitting service life.

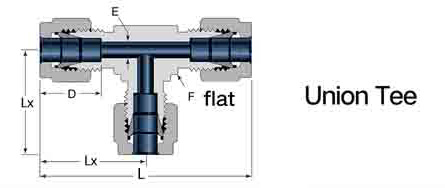

Tube OD | Basic Ordering Number | Dimensions,in. | ||||
| L | Lx | D | E | F | ||
1/8 | SKTT-2 | 1.76 | 0.88 | 0.50 | 0.09 | 3/8 |
3/16 | SKTT-3 | 1.92 | 0.96 | 0.54 | 0.12 | 7/16 |
1/4 | SKTT-4 | 2.12 | 1.06 | 0.60 | 0.19 | 1/2 |
5/16 | SKTT-5 | 2.34 | 1.17 | 0.64 | 0.25 | 5/8 |
3/8 | SKTT-6 | 2.40 | 1.20 | 0.66 | 0.28 | 5/8 |
1/2 | SKTT-8 | 2.84 | 1.42 | 0.90 | 0.41 | 13/16 |
5/8 | SKTT-10 | 3.06 | 1.53 | 0.96 | 0.50 | 1 |
3/4 | SKTT-12 | 3.14 | 1.57 | 0.96 | 0.62 | 1 1/16 |
7/8 | SKTT-14 | 3.52 | 1.76 | 1.02 | 0.72 | 1 3/8 |
1 | SKTT-16 | 3.86 | 1.93 | 1.23 | 0.88 | 1 3/8 |
1 1/8 | SKTT-18 | 4.34 | 2.17 | 1.23 | 0.97 | 1 11/16 |
1 1/4 | SKTT-20 | 5.34 | 2.67 | 1.62 | 1.09 | 1 11/16 |
1 1/2 | SKTT-24 | 6.20 | 3.10 | 1.97 | 1.34 | 2 |
2 | SKTT-32 | 8.44 | 4.22 | 2.66 | 1.81 | 3/4 |
Tube OD | Basic Ordering Number | Dimensions,mm | ||||
| L | Lx | D | E | F | ||
| 2 | SKTT-2M | 44.7 | 22.3 | 12.9 | 1.7 | 3/8 |
3 | SKTT-3M | 44.7 | 22.3 | 12.9 | 2.4 | 3/8 |
4 | SKTT-4M | 50.8 | 25.4 | 13.7 | 2.4 | 1/2 |
6 | SKTT-6M | 53.9 | 27.0 | 15.3 | 4.8 | 1/2 |
8 | SKTT-8M | 59.7 | 29.9 | 16.2 | 6.4 | 5/8 |
10 | SKTT-10M | 63.0 | 31 5 | 17.2 | 7.9 | 11/16 |
12 | SKTT-12M | 72.0 | 36.0 | 22.8 | 9.5 | 13/16 |
14 | SKTT-14M | 77.6 | 38.8 | 24.4 | 11.1 | 1 |
15 | SKTT-15M | 77.6 | 38.8 | 24.4 | 11.9 | 1 |
16 | SKTT-16M | 77.6 | 38.8 | 24.4 | 12.7 | 1 |
18 | SKTT-18M | 79.6 | 39.8 | 24.4 | 15.1 | 1 1/16 |
20 | SKTT-20M | 89.3 | 44.6 | 26.0 | 15.9 | 1 3/8 |
22 | SKTT-22M | 89.3 | 44.6 | 26.0 | 18.3 | 1 3/8 |
25 | SKTT-25M | 98.3 | 49.1 | 31.1 | 21.8 | 1 3/8 |
28 | SKTT-28M | 128.0 | 64.0 | 36.6 | 21.8 | 41mm |
30 | SKTT-30M | 140.0 | 69.9 | 39.6 | 26.2 | 46mm |
32 | SKTT-32M | 145.0 | 72.3 | 42.0 | 28.6 | 46mm |
38 | SKTT-38M | 168.0 | 84.0 | 49.4 | 33.7 | 55mm |
50 | SKTT-50M | 211.0 | 106.0 | 65.0 | 45.2 | 2 3/4 |
