Male Pipe Weld Elbow

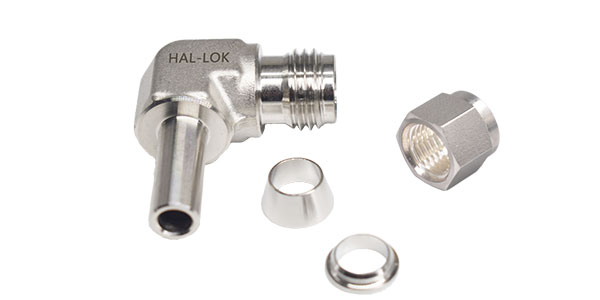

Instrument Stainless Steel Tube Fitting Male Pipe Weld Elbow

Hotline:

+86 18721872815

product description

2025Shanghai Haoliu Product Catalog.pdf

Features:

Available materials:SS304,SS316,904L,Alloy,etc.
Available in size:1/16" to 1" and 3mm to 38mm
Thread:NPT,BSP,BSPT,UNF,ISO,SAE etc.
Working temperature: -4 to 392℉(-20 to 200℃)
Working pressure:up to 3000psig(206bar)
Silver plated nuts,reduce torque and easy to install.
Corrosion free with excellent chemical resistance
Hardened threads with smooth surface finish avoid galling and help to extend the fitting service life.

Tube OD	PipeWeld Size	Basic Ordering Number	Dimensions,in.
Tube OD	PipeWeld Size	Basic Ordering Number	L	D	S	F	J
1/4	1/8	SKG-4-2T	1.11	0.65	0.24	1/2	0.410
1/4	1/4	SKG-4-4T	1.11	0.65	0.24	1/2	0.545
3/8	1/4	SKG-6-4T	1.25	0.71	0.33	5/8	0.545
1/2	1/2	SKG-8-8T	1.47	0.96	0.46	13/16	0.845
3/4	3/4	SKG-12-12T	1.62	1.01	0.67	1 1/16	1.055
