Features:
Available materials:SS304,SS316,904L,Alloy,etc.
Working pressures up to 1000~3000 psig (207 bar)
Working temperature:-17℃ to 232℃

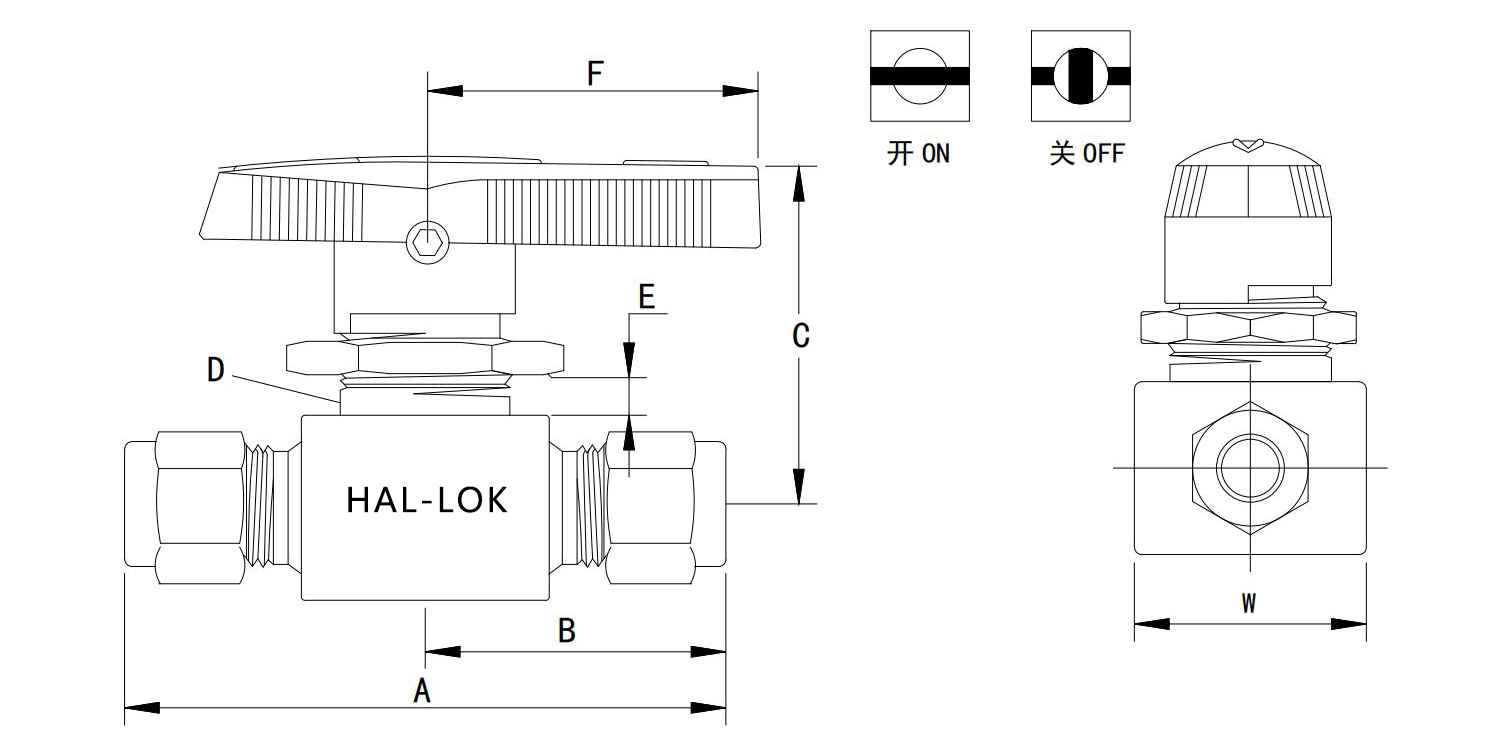

Ordering Number | Tube OD | Orifice | Cv | Dimensions | ||||||
| A | B | C | D | E | F | W | ||||
| Dimensions,in. | ||||||||||
YBOF-2 | 1/8 | 0.09 | 0.15 | 2.02 | 1.01 | 1.37 | 0.60 | 1/4 | 1.27 | 0.59 |
YBQF-3 | 3/16 | 0.13 | 0.35 | 2.21 | 1.11 | 1.37 | 0.60 | 1/4 | 1.27 | 0.59 |
YBQF-4 | 1/4 | 0.19 | 0.90 | 2.37 | 1.19 | 1.48 | 0.79 | 1/4 | 1.27 | 0.79 |
YBOF-6 | 3/8 | 0.28 | 2.00 | 2.88 | 1.45 | 2.08 | 1.14 | 3/8 | 1.51 | 1.13 |
| YBOF-8 | 1/2 | 0.41 | 4.60 | 3.49 | 1.75 | 2.45 | 1.51 | 3/8 | 2.37 | 1.51 |
| Dimensions,mm | ||||||||||
YBOF-3M | 3 | 2.4 | 0.15 | 51.1 | 25.6 | 34.6 | 15.2 | 6.5 | 32.1 | 14.8 |
YBOF-6M | 6 | 4.8 | 0.90 | 60.1 | 30.1 | 37.4 | 15.2 | 6.5 | 32.1 | 19.9 |
| YBQF-8M | 8 | 4.8 | 0.90 | 62.6 | 31.3 | 37.4 | 19.9 | 6.5 | 38.2 | 19.9 |
| YBOF-10M | 10 | 7.1 | 2.00 | 73.1 | 36.6 | 52.6 | 28.8 | 9.8 | 43.1 | 28.6 |
| YBQF-12M | 12 | 10.3 | 4.60 | 88.6 | 44.3 | 62.1 | 38.2 | 9.8 | 60.1 | 38.2 |
