Features:
Available materials:SS304,SS316,904L,Alloy,etc.
Working pressures up to 3000 psig (207 bar)
Working temperature:-17¡æ to 232¡æ

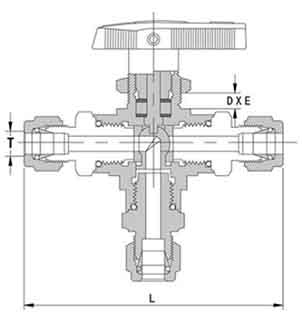

Ordering Number | Tube OD | Dimensions,mm | ||
| L | D X E | Orifice | ||
YBQF3-2 | 1/8 | 73 | 16 x 6.4 | 2.5 |
YBQF3-4 | 1/4 | 85 | 16 x 6.4 | 4.3 |
YBQF3-6 | 3/8 | 97 | 20 x 6.4 | 6.5 |
YBQF3-8 | 1/2 | 105 | 16 x 6.6 | 10.4 |
YBQF3-12 | 3/4 | 113 | 23 x 9.7 | 10.4 |
YBQF3-3M | 3mm | 73 | 23 x 9.7 | 2.5 |
YBQF3-4M | 4mm | 73 | 16 x 6.4 | 2.5 |
YBQF3-6M | 6mm | 85 | 16 x 6.4 | 4.3 |
| YBQF3-8M | 8mm | 97 | 16 x 6.4 | 4.3 |
YBQF3-10M | 10mm | 97 | 16 x 6.4 | 6.5 |
YBQF3-12M | 12mm | 105 | 20 x 6.4 | 6.5 |
YBQF3-14M | 14mm | 105 | 20 x 6.4 | 10.4 |
YBQF3-16M | 16mm | 105 | 23 x 97 | 10.4 |
YBQF3-18M | 18mm | 113 | 23 x 97 | 10.4 |
| YBQF3-20M | 20mm | 113 | 23 x 97 | 10.4 |
