Features:

• Single-stage pressure reducing structure

• One pressure gauge

• The body and diaphragm are hard sealed

• Female thread:1/4"NPT(female）

• The internal structure is easy to purge,built in filter screen

• Panel type or wall type installation can be adopted

• Needle valve and diaphragm valve can be selected for air outlet

 Specifications:

• Inlet pressure max.:3000psig

• Outlet pressure:0〜25psig,0〜50psig,0〜100psig,0〜250psig,0〜500psig

• Operating temperature:-40°F to+165°F(-40°C to+74°C)

• Proof pressure:150% of Maximum rated pressure

• Leak rate:2x10-8 atm cc/sec He

• Cv:0.08

  Material of Constructions:

• Body::SS316L

• Bonnet::304 SS

• Diaphragm:Alloy C-276

• Valve seat:PCTFE

• Valve rod:SS316L

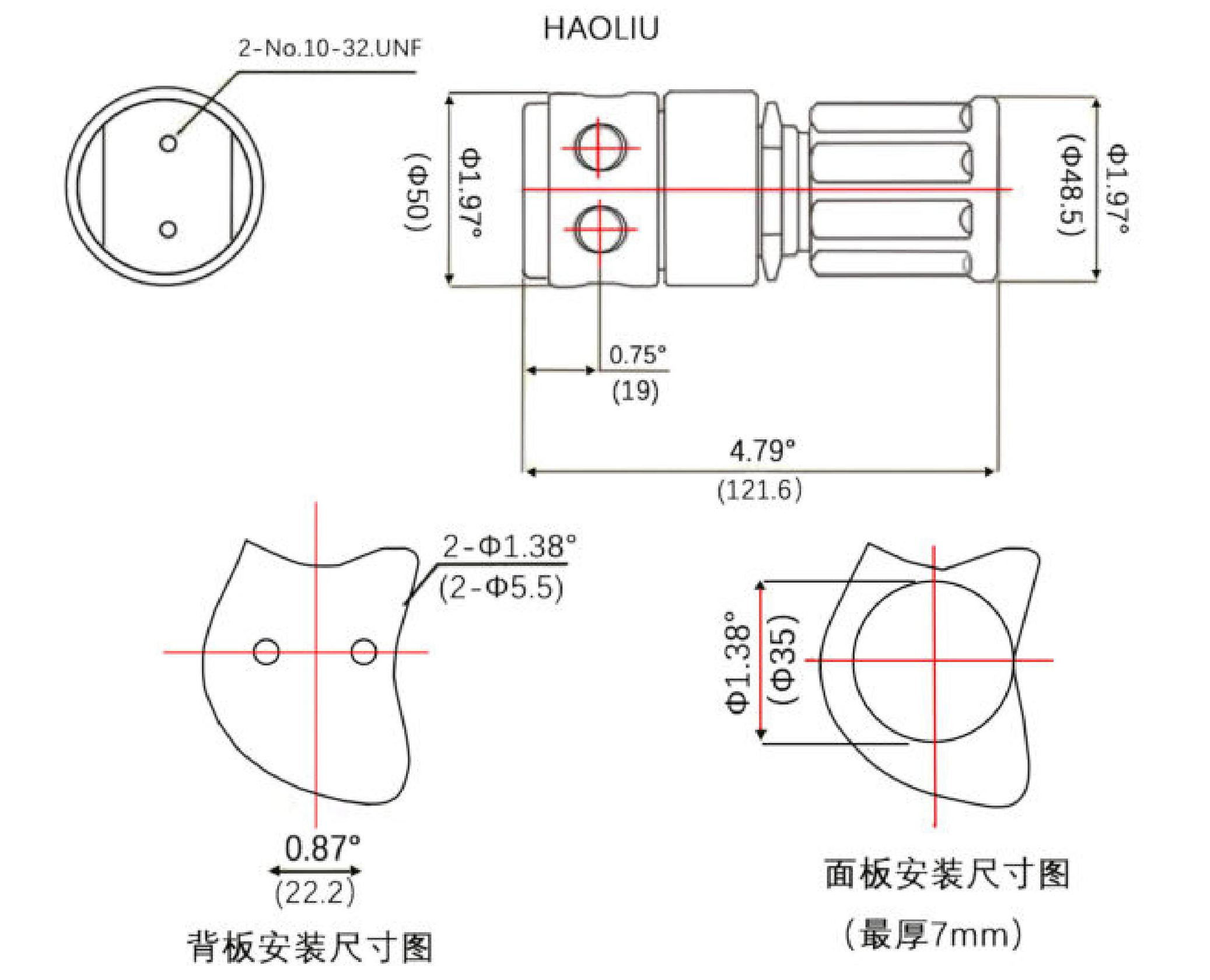

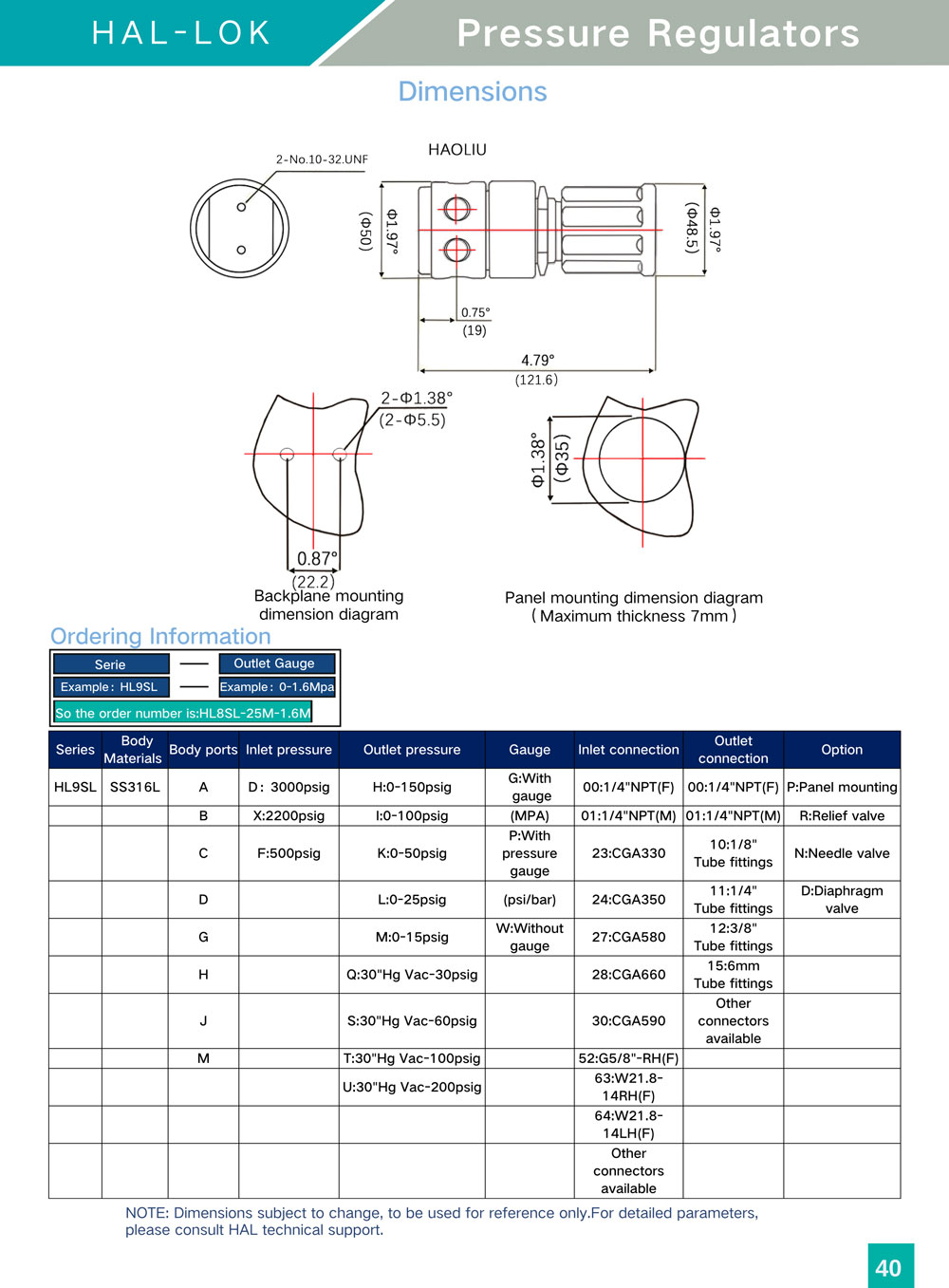

NOTE: Dimensions subject to change, to be used for reference only.For detailed parameters,please consult HAL technical support.
