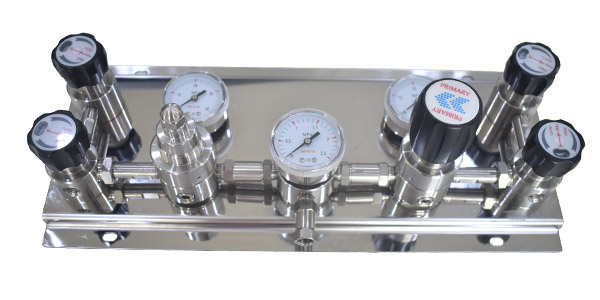

Features:

• Using special gas single-stage pressure regulator

• Diaphragm valve knob with on/off indicator window

• Internal structure is easy to blow

• Expandability with convergence tubes

• Wall mountable

• Optional pressure alarm device available

 Specifications:

• Inlet pressure max.: 3000psig

• Outlet pressure: 0〜25psig,0〜50psig,0〜100psig,0〜250psig

• Operating temperature:-40°F to+165°F(-40°C to+74°C)

• Proof pressure: 150% of Maximum rated pressure

• Leak rate: 2x10-8 atm cc/sec He

• Cv:0.08

• Weight:6KG

  Material of Constructions:

• Body: SS316L

• Gasket: PTFE;PCTFE;PEEK

• Diaphragm: SS316L

• Inlet end: NPT 1/4(Female)
