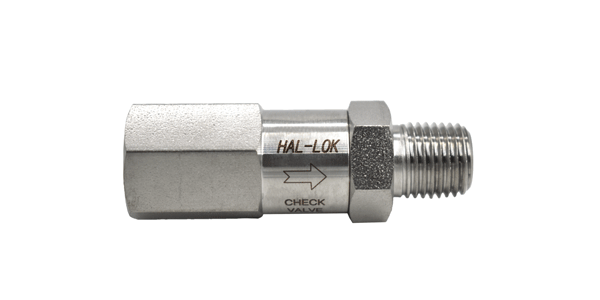

Female and Male Check Valve
Female and Male Check Valve/Instrument Non Return Check Valves
Contact Us Now
Hotline:
+86 18721872815
product description

Features:

  • Working pressures up to 3000 psig (207 bar)

  • Inline check valve stops reversed flow in order to protect instrument

  • Arrow on body indicates flow direction,easy to install

  • Connection type:Tube End and Male/Female Thread

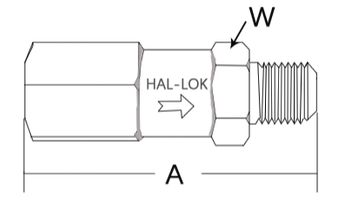

Model

Connection Size

Dimensions.mm

Internal Thread

External Thread

AW

4NFM-SS

NPT1/4

NPT1/4

60

19

6NFM-SS

NPT3/8

NPT3/8

78

23

8NFM-SS

NPT1/2

NPT1/2

92

27.5

12NFM-SS

NPT3/4

NPT3/4

106

33

4RFM-SS

RC1/4

RC1/4

60

19

6RFM-SS

RC3/8

RC3/8

78

23

8RFM-SS

RC1/2

RC1/2

92

27.5

12RFM-SSRC3/4RC3/410633
