VCR Fittings

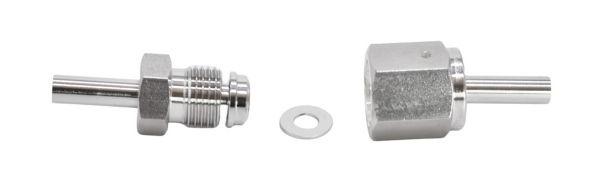

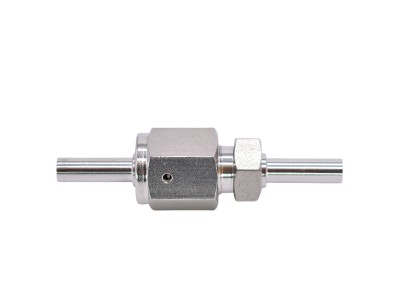

Swagelok Type VCR Fittings Metal Gasket Face Seal Fittings
Contact Us Now
Hotline:
+86 18721872815
product description

  Features:

  • Available in size:1/16" to 1"

  • Working temperature:-20℃ to 537 ℃

  • Female threads are siliver plated to prevent galling

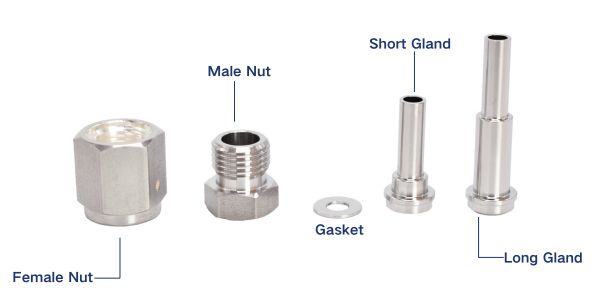

  • Side-load retainer gasket for easy installation and minimal clearance for removal,can be installed repeatedly

  • A variety of VCR face seal glands and bodies is available with controlled surface finishes, electropolished, and specially cleaned to meet ultrahigh-purity system requirements.


Basic

Ordering

Number

VCRTube O.D.

Tube

Wall Thickness

(in.}

Dimensions.mm
LBE

HVCR-4-4S

1/4in.1/4in.0.035

15.0

6.4

4.6

HVCR-4-4M

1/4in.1/4in.0.035

18.3

9.6

4.6

HVCR-4-4L

1/4in.1/4in.0.035

27.9

19.1

4.6

HVCR-8-4

1/2in.1/4in.0.035

28.4

19.1

4.6

HVCR-8-6S

1/2in.3/8in.0.035

15.7

6.4

7.9

HVCR-8-6L

1/2in.3/8in.0.035

28.4

19.1

7.9

HVCR-8-8S

1/2in.1/2in.0.049

15.7

6.4

10.2

HVCR-8-8M

1/2in.1/2in.0.049

18.8

9.6

10.2

HVCR-8-8L1/2in.1/2in.0.04928.419.1

10.2


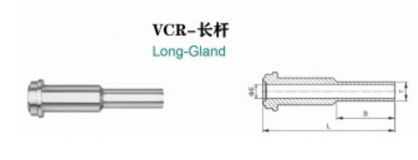

Basic

Ordering

Number

VCRTube O.D.

Tube

Wall Thickness

(in.}

Dimensions.mm
LBE

HVCR-4-4S

1/4in.1/4in.0.035

30.5

6.4

1.8

HVCR-4-4M

1/4in.1/4in.0.035

33.5

9.6

4.6

HVCR-4-4L

1/4in.1/4in.0.035

43.2

19.1

4.6

HVCR-8-4

1/2in.1/4in.0.035

45.7

19.1

4.6

HVCR-8-6S

1/2in.3/8in.0.035

32.8

6.4

7.9

HVCR-8-6L

1/2in.3/8in.0.035

45.5

19.1

7.9

HVCR-8-8S

1/2in.1/2in.0.049

32.8

6.4

10.2

HVCR-8-8M

1/2in.1/2in.0.049

35.8

9.6

10.2

HVCR-8-8L1/2in.1/2in.0.049

45.5

19.1

10.2


Basic

Ordering

Number

VCRDimensions.mm
LEG

HVN-4

1/4in.

20.6

9.1

19.1

HVN-8

1/2in.

22.4

15.5

27.0

HVN-12

3/4in.

28.4

22.6

38.1


Basic

Ordering

Number

VCRDimensions.mm
LEG

HVN-4

1/4in.

18.0

9.1

15.9

HVN-8

1/2in.

20.6

15.5

23.8

HVN-12

3/4in.

25.4

22.6

33.3


Basic

Ordering

Number

VCRDimensions.mm
TxE

DP-4

1/4in.

11.9

5.6

DP-8

1/2in.

19.8

11.2

DP12

3/4in.

29.0

16.8
