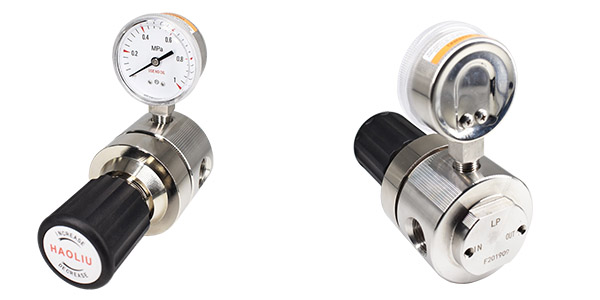

Features:

• Single-stage pressure reducing structure

• The body and diaphragm are hard sealed

• Female thread:1/2"NPT(F),3/4"NPT(F)

• The internal structure is easy to purge,built in filter screen

• Panel type or wall type installation can be adopted

• Needle valve and diaphragm valve can be selected for air outlet

 Specifications:

• Inlet pressure max.: 3000psig

• Outlet pressure: 0〜25psig,0〜50psig,0〜100psig,0〜250psig,0〜500psig

• Operating temperature:-40°F to+165°(-40°C to+74°C)

• Proof pressure: 150% of Maximum rated pressure

• Leak rate: 2x10-8 atm cc/sec He

• Cv:1.0

  Material of Constructions:

• Body: SS316L

• Bonnet: 304 SS

• Diaphragm: Alloy C-276

• Valve seat：PCTFE

• Valve rod：SS316L

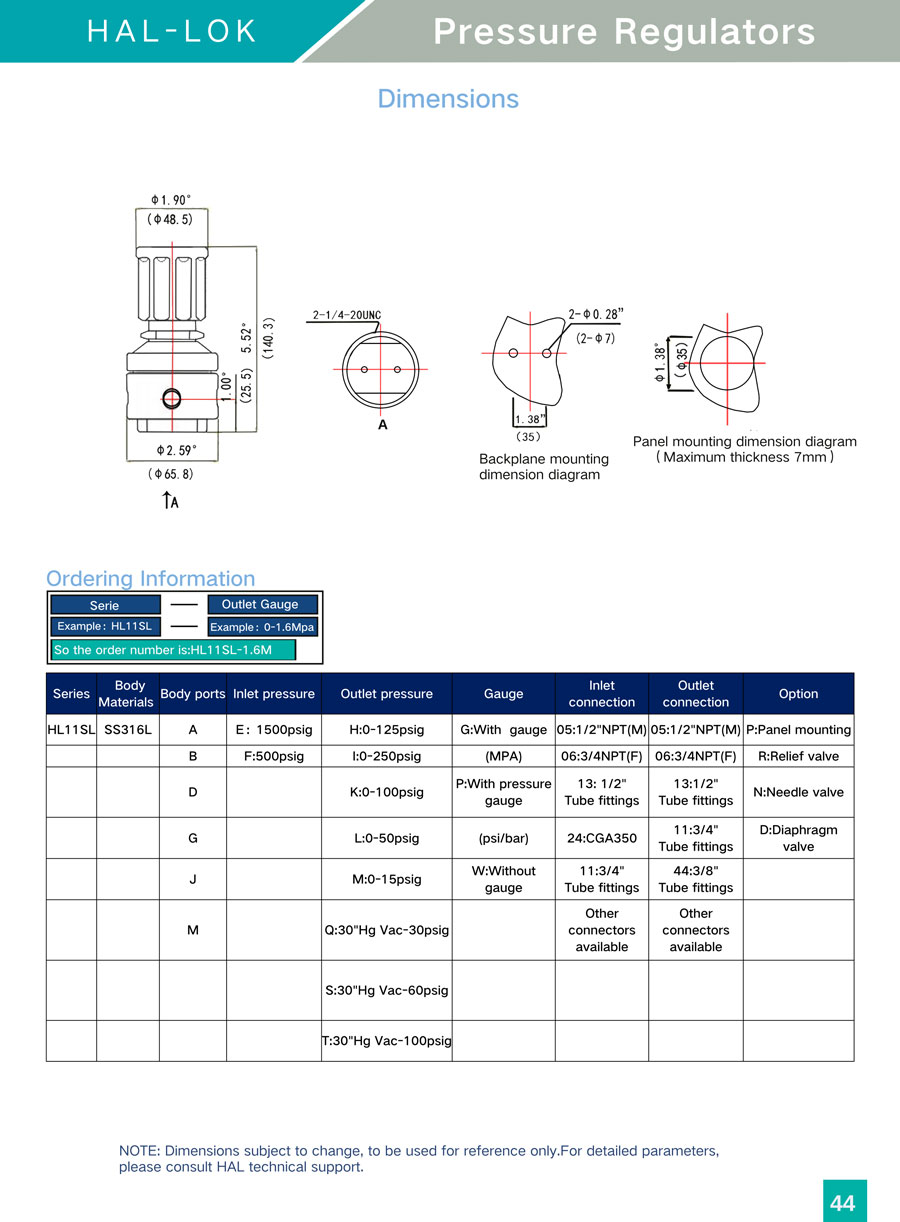

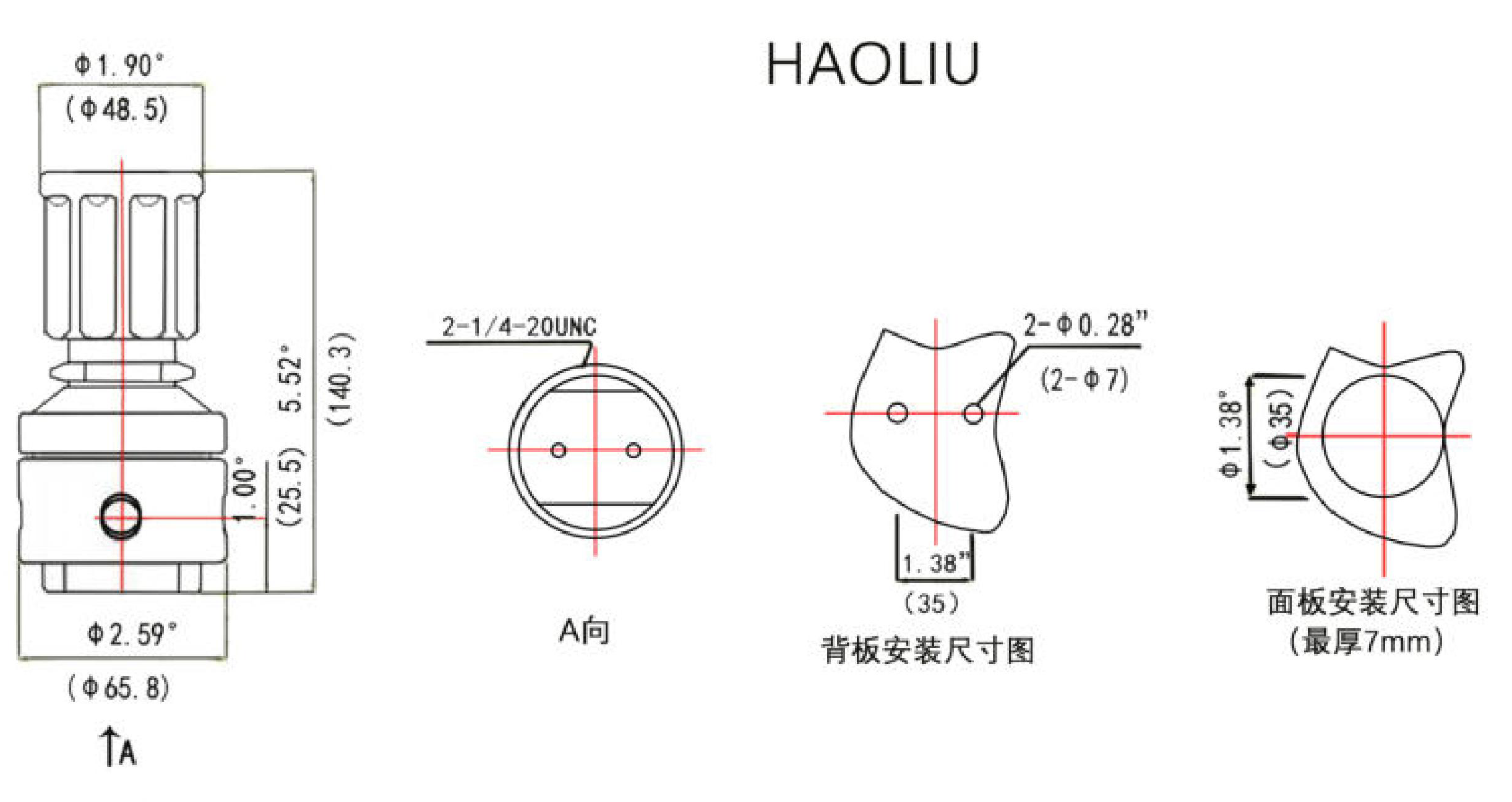

NOTE: Dimensions subject to change, to be used for reference only.For detailed parameters,please consult HAL technical support.
