Female Elbows

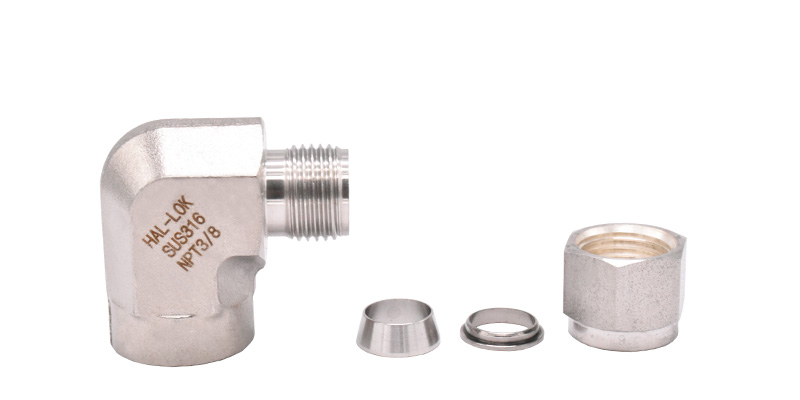

Stainless Steel Instrument 90 Degree Tube Fittings Female to Male Elbows
Contact Us Now
Hotline:
+86 18721872815
product description

Features:

  • Available materials:SS304,SS316,904L,Alloy,etc.

  • Available in size:1/16" to 1" and 3mm to 38mm

  • Thread:NPT,BSP,BSPT,UNF,ISO,SAE etc.

  • Working temperature:-4 to 392℉(-20 to 200℃)

  • Working pressure:up to 3000psig(206bar)

  • Silver plated nuts,reduce torque and easy to install.

  • Corrosion free with excellent chemical resistance

  • Hardened threads with smooth surface finish avoid galling and help to extend the fitting service life.


NOTE: If ordering R threads, add

RT to the ordering number.

Example:SKTF-2-2RT

Example:SKTF-6M-2RT


Tube

OD

NPT

Basic

Ordering

Number

Dimensions,mm
LDSF
6
1/8SKTF-6M-2N27.5

15.8

5.3

1/2

1/4SKTF-6M-4N30.3

11/16

1/2SKTF-6M-8N35.11
81/4SKTF-8M-4N31.1

16.7

6.9

11/16

10
1/2SKTF-10M-8N32.0

17.7

8.4

11/16

1/4SKTF-10M-4N34.0

13/16

12
1/4SKTF-12M-4N36.5

23.3

10.0

13/16

1/2SKTF-12M-8N39.31
161/2SKTF-16M-8N40.024.913.211/16


Tube

OD

NPT

Basic

Ordering

Number

Dimensions,in.
LDSF
1/8

1/8

SKTF-2-2N

1.02

0.55

0.14

1/2

1/4

SKTF- 2-4N

1.13

11/16

3/16

1/8

SKTF-3-2N

1.05

0.59

0.17

1/2

1/4

1/8

SKTF-4-2N

1.11

0.65

0.24

1/2

1/4

SKTF-4-4N

1.22

11/16

3/8

SKTF-4-6N

1.30

13/16

1/2

SKTF-4-8N

1.41

1

5/161/8

SKTF-5-2N

1.18

0.69

0.30

9/16

1/4

SKTF-5-4N

1.24

11/16

3/8

1/8

SKTF-6-2N

1.25

0.71

0.33

5/8

1/4

SKTF-6-4N

1.28

11/16

3/8

SKTF-6-6N

1.35

13/16

1/2

SKTF-6-8N

1.47

1

1/21/4SKTF-8-4N1.47

0.95

0.46

13/16

3/8

SKTF-8-6N

1.47

13/16

1/2

SKTF-8-8N

1.58

1

5/8
3/8

SKTF-10-6N

1.55

1.01

 0.55

15/16

1/2

SKTF-10-8N

1.62

1 1/16

3/4
1/2SKTF-12-8N1.62

1.01

0.67

1 1/16

3/4

SKTF-12-12N

1.81

1 3/8
7/83/4SKTF-14-12N1.81

1.07

0.77

1 3/8

1

3/4

SKTF-16-12N

1.98

1.280.93

1 3/8

1SKTF-16-16N

2.16

1 11/16


Related Products
Advantage
  • Precision-Engineered
    Expertly crafted for superior leak-proof performance and extended service life.
  • High-Pressure Rated
    Robust construction guarantees reliable operation in high-pressure environments.
  • Corrosion Resistant
    Manufactured from premium stainless steel to withstand corrosive media.
  • Fully Interchangeable
    Standard dimensions ensure seamless replacement with major international brands.
  • Rigorously Tested
    Every product is stringently inspected under our ISO9001 quality system.
  • Versatile Applications
    Suitable for a wide range of industries, from semiconductors to biopharma.
  • Premium Materials
    High-grade stainless steel core components ensure integrity from the start.
  • Globally Proven
    Trusted by customers worldwide for proven performance and reliability.
